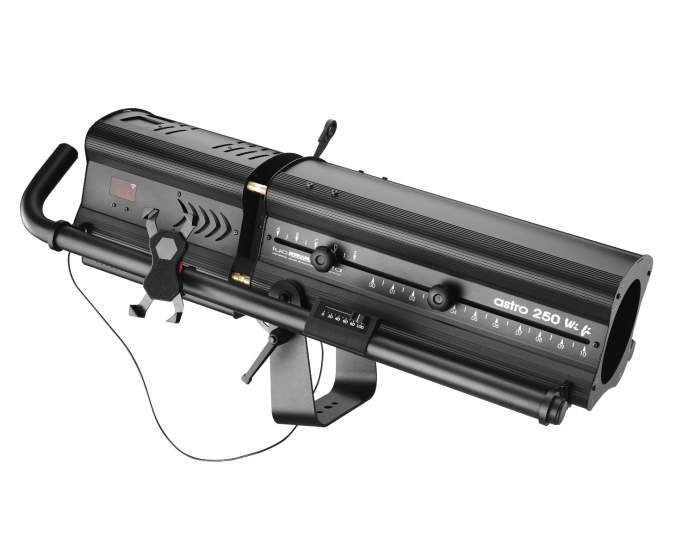

Luci Della Ribalta (LDR) Astro 250 CM wi‐fi 380w RGBW LED followspot

In stock
Code
01207190

Luci Della Ribalta Astro 250 CM wi‐fi 380w RGBW LED followspot

View full details

Configure now

Stylish, compact and extremely high efficiency RGBW led followspot with unique features allowing for precision and user‐friendly control in any situation.

‐ Colour Control by Android or IOS mobile device
connected to proprietary wi‐fi access point (1 device
only, 12m range) or remote DMX512‐RDM
‐ USB port supplied to re‐charge your mobile device
while operating the followspot
‐ Clamp‐on universal mobile phone holder, 3.5/6.5in,
rotatable 360°, supplied
‐ Clamp on digital dimmer, positionable along the side
bars to suit any operator’s needs, supplied
‐ Android mobile phone, with pre‐loaded proprietary
colour library, on demand
‐ Free proprietary colour library available for download
from our website for those using own mobile device

A recently‐added new feature allows to choose from 10 pre‐set whites, ranging from 2700K to 5800K, using a dedicated DMX channel Standard delivery also includes iris diaphragm and spigot.

Application

Beam style well‐defined, flat field projection
Suitable for theatres, TV studios, permanent shows, worship venues, music
bars and restaurants, sport‐halls
Specification level professional range
Beam angle 8°‐ 22° Typical throw distance 4 – 25m

Electrical specifications

Light source 380W LED, RGBW
Supply Volts 100/260V AC single phase
Frequency / Current 50/60Hz – 1.17A @ 230v ac‐ 2.35A @ 110V AC
Power consumption 250W at full power, 9W in sleep mode
USB PSU integrated; allows re‐charging of mobile device during operation
Cable/connection 2.2m, 3 x 1.5mm2 cable, Power‐con to bare ends
Standards Compliance EN60598‐2‐17, CE marked

Mechanical specifications

Construction extruded aluminium and sheet steel
Mounting steel stirrup with 12mm centre hole and DIN mounting. spigot
for ø29mm tripod supplied
Pan & Tilt control 2 side‐handles head to rear
Weight/Packed weight 21.0 kg / 26.0 kg

Operational specifications

Focus adjustment slide zoom controls (diameter and softness) at side
DMX channels/connection 6 or 7 ch/ XLR5 connectors, IN/OUT
RDM integrated
WI‐FI integrated
Colour RGBW + 10 preset whites (2700K to 5800K) from a dedicated
DMX channel
Colour control by Android or IOS mobile device connected to proprietary Wi‐Fi
access point (1 device only – 12m) or remote DMX512‐RDM
Dimming positionable external activator Clamp‐on dimmer, supplied or
remote DMX 8 or 16 bits
LED temperature built‐in sensor for real time monitoring
Ambient temperature 35°C max.
Fan speed control 3 modes available Silent/Auto/Constant
Fade curves 2 curves( linear, square)
LED Frequency 16KHz – flicker‐free
LCD display set‐up, DMX, monitor, diagnostics
Software upload remote, via DMX 512 cables

Optical specifications

Optical system double condenser with variable zoom
LED array / rated life RGBW, replaceable
Rated LED life 50,000 hours at 25°C, maintains 70% of original intensity
Beam colour temperature Any, from RGBW colour mixing
CRI (Colour Rendering Index) >90

Accessories

Spare iris diaphragm 20100707 Gobo holder A/B size 20100807
Black tripod 20102401 Chrome plated tripod 20102402
Spare spigot ø29mm 20102200 Spigot w/fluid head 20102100
Flight case 20107180 Remoto 20702072
Clamp‐on digital dimmer 20702071 supplied
Clamp‐on universal phone holder 20702073 supplied
Clamp‐on Android mobile phone, pre‐loaded app/colour library 20702074

Photometric data

Narrow beam RGBW at 1300mA
Beam dia. 0.6 1.1 1.7 2.2 2.8 3.1 m
R 2690 672 299 168 107 75 lux 18,2 lm/W
G 7842 1960 870 489 314 217 lux 53,1 lm/W
B 1706 426 189 106 68 47 lux 14,2 lm/W
W 13630 3407 1514 852 545 379 lux 79,7 lm/W
Full 14391 3598 1599 886 575 400 lux
Distance 4 8 12 16 20 24 m

Wide beam
Beam dia. 0.8 1.2 1.6 1.9 2.3 2.7 m
R 1837 817 459 294 204 150 lux 18,2 lm/W
G 6694 2975 1674 1071 743 546 lux 53,1 lm/W
B 1181 525 295 189 131 97 lux 14,2 lm/W
W 11550 5132 2888 1848 1283 943 lux 79,7 lm/W
Full 11812 5250 2954 1890 1312 964 lux
Distance 2 3 4 5 6 7 m

This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.

Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.

Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.
