Luci Della Ribalta (LDR) Astro 600 LED followspot

In stock
Code
01607180

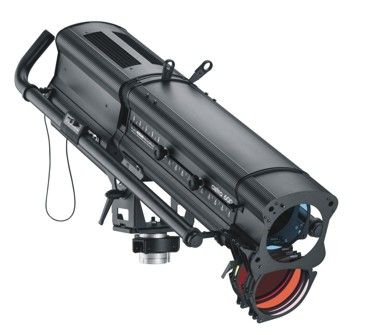

Luci Della Ribalta Astro 600, 600w LED followspot

View full details

Configure now

The latest LED followspot from LDR, the Astro 600 produces an astonishingly pure white beam of light with an extremely flat field. This unit produces this incredible output with its integrated state‐of‐the art LED engine and electronic control system. With its 3200K and 6000K white beam generated by a
single‐source 600W COB which prevents any colour shift during dimming, Astro is currently the best performing LED followspot in its category available on the market. A double‐condenser optics system with variable zoom from 8° to 16° and unparalleled smooth dimming curve further contribute to the outstanding performance of the Astro 600. Standard features include: 6‐disc removable colour changer, sizing iris, movable clamp‐on digital dimmer slide
and spigot with integrated fluid‐head. A full range of accessory options complement the range.

Application

Beam style well‐defined, flat field projection
Suitable for theatres, TV studios, auditoriums, sport‐halls and
arenas, worship venues
Specification level professional range
Beam angle 7°‐ 12° Typical throw distance 20 – 60m

Electrical specifications

Light source 600W LED, White
Supply Volts 100/260V AC single phase
Frequency / Current 50/60Hz – 1.17A @ 230v ac‐ 2.35A @ 110V AC
Power consumption 630W at full power, 9W in sleep mode
Cable/connection 2.5m, 3 x 1.5mm2 cable, Power‐con to bare ends
Standards Compliance EN60598‐2‐17, CE marked

Mechanical specifications

Construction extruded aluminium and metal-sheet
Mounting steel stirrup with 12mm centre hole and DIN mounting.
Spigot with aluminium fluid head for ø29mm tripod
supplied
Pan & Tilt control 2 side‐handles head to rear
Weight/Packed weight 31.0 kg / 36.0 kg

Operational specifications

Focus adjustment slide zoom controls (diameter and softness) at side
DMX channels/connection 1 to 3 ch/ XLR5 connectors, IN/OUT
RDM integrated
Dimming positionable external activator Clamp‐on dimmer,
supplied or remote DMX 8 or 16 bits or rotating knob at
the back
LED temperature built‐in sensor for real time monitoring
Ambient temperature 35°C max.
Fade curves 2 curves (linear, square)
LED Frequency Pure DC – flicker‐free
LCD display set‐up, DMX, monitor, diagnostics

Optical specifications

Optical system double condenser with variable zoom
LED array / rated life white, replaceable
Rated LED life 50,000 hours at 25°C, maintains 70% of original
intensity
Beam colour temperature 3200K or 6000K
CRI (Colour Rendering Index) Ra>90; R9 >80; R12>75;

Accessories
5‐Col. Colour‐changer 20105106 6‐Col. Colour changer 20105206 supplied
Spare iris diaphragm 20100707 Gobo holder A/B size 20100807
Black tripod 20102401
Spigot w/fluid head ‐ supplied 20102100 Spigot ø29mm 20102200
Flight case 20107180 Remoto 20702072
Clamp‐on digital dimmer 20702071 supplied

Photometric data

Narrow focus 3200K – 32,8 lm/W (at 7500mA)
Beam dia. 2.4 3.1 3.7 4.3 4.9 5.5 6.1 6.7 7.3 m
lux 2704 1730 1201 883 676 534 433 357 300
Distance 20 25 30 35 40 45 50 55 60 m

Wide focus
Beam dia. 4.2 5.3 6.3 7.4 8.4 9.5 10.5 11.6 12.6 m
lux 913 585 406 298 228 181 146 121 102
Distance 20 25 30 35 40 45 50 5 5 60 m

Narrow focus 6000K – 56,62 lm/W (at 7500mA)
Beam dia. 2.4 3.1 3.7 4.3 4.9 5.5 6.1 6.7 7.3 m
lux 2940 1802 1306 960 735 581 470 388 323
Distance 20 25 30 35 40 45 50 55 60 m

Wide focus
Beam dia. 4.2 5.3 6.3 7.4 8.4 9.5 10.5 11.6 12.6 m
lux 1155 739 513 377 289 228 185 160 134
Distance 20 25 30 35 40 45 50 55 60 m

This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.

Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.

Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.

Can’t find your lantern manufacturer or model in the list?
Not sure what the details are of the lantern/light you’re planning to use?
Which gobo material should I choose?
How long does it take to produce the gobo?
I’m in a rush! Can you get gobos to be quicker?
I’m not sure which gobo would be right, can you help?
Where are your gobos made?

Can’t find your lantern manufacturer or model in the list?
If you can’t find either your lantern manufacturer or model in the drop down lists above then please select ‘other’ from the manufacturer dropdown. This will then provide a simple text field where you can detail as much information you have about your lantern. Don’t worry about finding out the gobo size, we’ll contact the manufacturer directly if we don’t already have the size listed for your gobo.

Not sure what the details are of the lantern/light you’re planning to use?
In order to produce your gobo in the correct size we’ll need to know which fixture you plan on projecting the gobo from. If you can’t access the fixture at this time then try and take a photo and send it to our team at [email protected] for more info.

Which gobo material should I choose?
Please refer to the “Which Gobo Material” tab.

How long does it take to produce the gobo?
Stock gobos are typically made to order and shipped the same day (depending on the time of your order). Custom gobos can take a slightly longer in order to ready the artwork and get your proofs approved. Our standard shipping offering deliver next day.

I’m in a rush! Can you get gobos to be quicker?
YES! We understand industry requirements and are used to turning orders around very quickly. If you have specific requirements then get in touch with our team and we’ll sort it out for you. We don’t charge a penny more...

I’m not sure which gobo would be right, can you help?
We sure can. Our staff are experts in gobo projection and we’ve pretty much seen it all done! If you’re looking for any advice when it comes to gobo projection then please get in touch.

Where are your gobos made?
We’re the leading dealer in the UK for Rosco products. All of our gobos are produced directly in the state of the art facility at Rosco in London & Texas. Rosco supports our vision of supplying the highest quality gobos by using the best materials and latest manufacturing technology, so we’ve become great partners.
