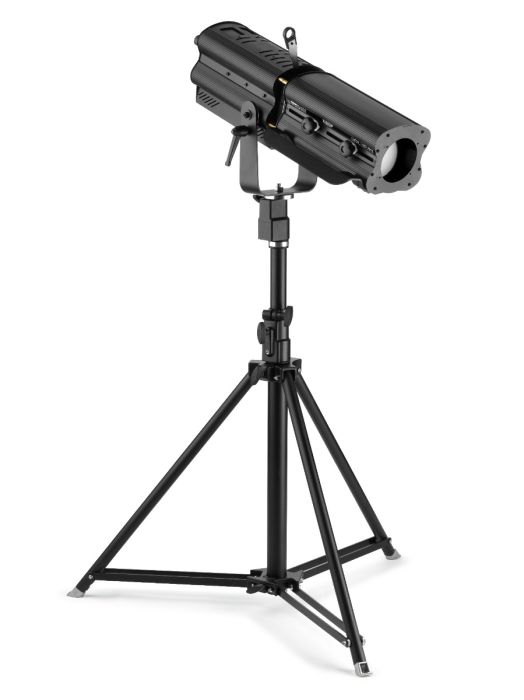

** Tripod sold Separately **
New, stylish, compact and high efficiency 100W white led narrow‐angle followspot featuring double‐condenser optics and a PWM dimming power source. ASTRO 100 is DMX controllable for 16 bit dimming DMX512 but manual dimming from rear panel is also an option.Its extremely compact size and its outstanding
performance makes the ASTRO 100 the ideal choice for short‐throw applications in amateur theatres, and small stages in schools, worship venues, city halls, clubs,concerts or events.
The Astro 100 is available in 3200K and 5600K white light and RGBW and on demand can also be obtained in white finish. Standard delivery includes the iris diaphragm, a spigot for followspot tripod and 2m mains cable fitted with Power‐Con. A full range of accessories complements the range.
Application
Beam style well defined, flat‐field profile projection
Suitable for short‐throws on theatres, stages, schools, worship venues, clubs
Specification level professional range
Beam angle 10°‐ 28°
Typical throw distance 2 – 10m
Electrical specifications
Light source 89W LED, white
Supply Volts 100/260V AC single phase
Frequency / Current 50/60Hz – 0.3A
Power consumption 100W at full power
Cable/connection 2m mains cable with fitted Neutrik Power‐con IN and OUT, supplied
Standards Compliance EN60598‐2‐17, CE marked
Mechanical specifications
Lamp House Construction extruded aluminium and sheet steel
Mounting & suspension steel stirrup with 12mm centre hole and DIN mounting; spigot for
ø28mm tripod supplied
Handle rear and side
Weight/Packed weight 10,1 kg / 11,6 kg
Colour frame metal, 125 x 125mm, accessory
Operational specifications
Focus adjustment slide zoom controls (diameter and softness) at side
Beam Shaping iris diaphragm, supplied + 4 shutter blades, accessory
DMX channels / connection 1 to 4 / XLR5 connectors, IN/OUT
Dimmer module PWM (Pulse Width Modulation), 8 or 16 bits
Dimming manual, from rear panel or remote, through control desk via DMX 512
signal
LED temperature built‐in sensor for real time monitoring
Ambient temperature 35°C max.
Fan speed control automatically set and controlled
Fade curves 4 curves (linear, square, LED‐HAL, User 1)
LED Frequency LED frequency control for TV cameras ranging from 3KHz to 460Hz.
Manually selectable from rear panel or remotely controlled through
DMX
Optical specifications
Optical system double condenser with variable zoom
LED array 89W, white, round‐shaped, replaceable
Rated LED life 25,000 hours at 25°C
Beam colour temperature 3200K or 5600K
CRI (Colour Rendering Index) >90
Accessories
Accessories
Metal colour frame 20100102 20100102B 20100102C
Spare iris diaphragm 20100707 Gobo holder, M/D size 20100801
5‐colour colour changer 20105103
Set of 4 shutter blades 80208019 x4
Black tripod 20102401 Spare spigot ø29mm 20102200
Photometric data
Photometric Data
Spot 3200K – 109 lm/W (at 2100mA)
Beam dia. 0.3 0.5 0.7 0.9 1.0 1.2 1.4 1.6 1.7 m
lux 11250 5000 2813 1800 1250 918 703 556 450
Distance 2 3 4 5 6 7 8 9 10 m
Flood
Beam dia. 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 m
lux 4500 2000 1125 720 500 367 281 222 168
Distance 2 3 4 5 6 7 8 9 10 m
Spot 5600K – 120 lm/W (at 2100mA)
Beam dia. 0.3 0.5 0.7 0.9 1.0 1.2 1.4 1.6 1.7 m
lux 14750 6556 3688 2360 1639 1204 922 728 590
Distance 2 3 4 5 6 7 8 9 10 m
Flood
Beam dia. 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 m
lux 6250 2778 1563 1000 694 510 391 309 250
Distance 2 3 4 5 6 7 8 9 10 m
This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.
Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.
Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.
Can’t find your lantern manufacturer or model in the list?
Not sure what the details are of the lantern/light you’re planning to use?
Which gobo material should I choose?
How long does it take to produce the gobo?
I’m in a rush! Can you get gobos to be quicker?
I’m not sure which gobo would be right, can you help?
Where are your gobos made?
Can’t find your lantern manufacturer or model in the list?
If you can’t find either your lantern manufacturer or model in the drop down lists above then please select ‘other’ from the manufacturer dropdown. This will then provide a simple text field where you can detail as much information you have about your lantern. Don’t worry about finding out the gobo size, we’ll contact the manufacturer directly if we don’t already have the size listed for your gobo.
Not sure what the details are of the lantern/light you’re planning to use?
In order to produce your gobo in the correct size we’ll need to know which fixture you plan on projecting the gobo from. If you can’t access the fixture at this time then try and take a photo and send it to our team at [email protected] for more info.
Which gobo material should I choose?
Please refer to the “Which Gobo Material” tab.
How long does it take to produce the gobo?
Stock gobos are typically made to order and shipped the same day (depending on the time of your order). Custom gobos can take a slightly longer in order to ready the artwork and get your proofs approved. Our standard shipping offering deliver next day.
I’m in a rush! Can you get gobos to be quicker?
YES! We understand industry requirements and are used to turning orders around very quickly. If you have specific requirements then get in touch with our team and we’ll sort it out for you. We don’t charge a penny more...
I’m not sure which gobo would be right, can you help?
We sure can. Our staff are experts in gobo projection and we’ve pretty much seen it all done! If you’re looking for any advice when it comes to gobo projection then please get in touch.
Where are your gobos made?
We’re the leading dealer in the UK for Rosco products. All of our gobos are produced directly in the state of the art facility at Rosco in London & Texas. Rosco supports our vision of supplying the highest quality gobos by using the best materials and latest manufacturing technology, so we’ve become great partners.
