Luci Della Ribalta (LDR) Astro 250 230w LED Followspot

In stock
Code
01207170

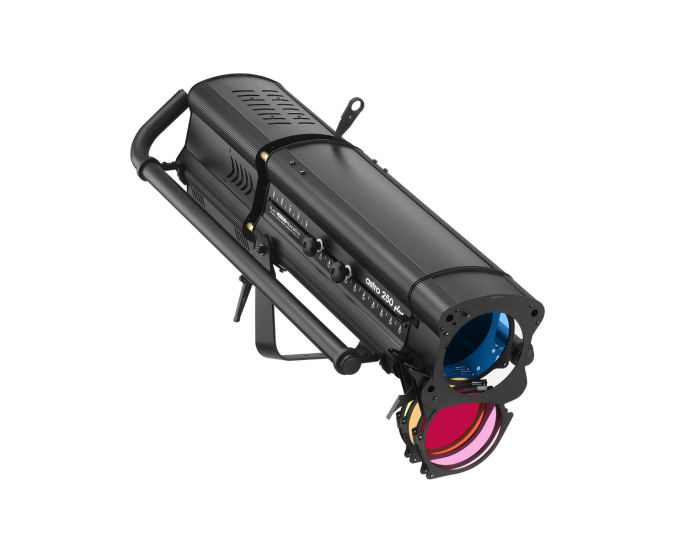

Luci Della Ribalta (LDR) Astro 250 230w LED Followspot

View full details

Configure now

Stylish, compact and extremely high efficiency followspot featuring a 230W white LED power source, digital dimming, flicker free and constant colour temperature at any light intensity and producing a powerful and highly‐defined beam of pure white light.

Astro 250 is ideal for short‐medium throw applications where heat, energy saving and long life source are a concern. Its attractive design and state‐of‐art specifications make it the obvious choice in theatres, stages, TV studios, circuses, churches, permanent shows, amusement parks or cruise ships.

Astro 250 is available in 3200K and 5600K white light or RGBW and standard delivery includes the iris diaphragm and the spigot. The kit version also includes mounted colour changer, black followspot tripod and flight case. A full range of accessories complements the range.

Application

Beam style well‐defined, flat field projection
Suitable for theatres, TV studios, permanent shows
Specification level professional range
Beam angle 8°‐ 23° Typical throw distance 5 – 30m

Electrical specifications
Light source 230W LED, white
Supply Volts 100/260V AC single phase
Frequency / Current 50/60Hz – 1.17A @ 230v ac‐ 2.35A @ 110V AC
Power consumption 250W at full power
Cable/connection 1.5m, 3 x 1.5mm2cable, Power‐con to bare ends
Standards Compliance EN60598‐2‐17, CE marked

Mechanical specifications
Construction extruded aluminium and sheet steel
Mounting & suspension steel stirrup with 12mm centre hole and DIN mounting. spigot
for ø28mm tripod supplied
Handle 2 side‐handles
Weight/Packed weight 19.5 kg / 24.6 kg
Colour frame metal, 185 x 185mm, not supplied

Operational specifications
Focus adjustment slide zoom controls (dia. and softness) at side
DMX channels/connection 1to 3 ch/ XLR5 connectors, IN/OUT
LED white COB, single source, no colour shift when fading
Dimming positionable external activator Clamp‐on dimmer; remote DMX
8 or 16 bits or mechanical
Strobe effect can be activated via DMX
LED temperature built‐in sensor for real time monitoring
Ambient temperature 35°C max.
Fan speed control 3 modes available: Silent/Auto/Constant
Fade curves 2 curves( linear, square)
LED Frequency 16KHz – flicker‐free
LCD display set‐up, DMX, monitor, diagnostics
RDM integrated

Optical specifications
Optical system double condenser with variable zoom
LED array white, replaceable
Rated LED life 50,000 hours at 25°C
Beam colour temperature 3200K and 5600K
CRI (Colour Rendering Index) >90

Accessories
Metal colframe+ front runners 20109106
5‐colour colour changer 20105106 Spigot with fluid head 20102100
Spare iris diaphragm 20100707 Gobo holder A/B size 20100807
Black tripod 20102401 Chrome plated tripod 20102402
Spare spigot ø29mm 20102200 Stirrup‐kit for suspension 20102900
Flight case 20107180 for followspot, col. changer, tripod
Clamp‐on manual dimmer 20702071 Remoto 20702072

Photometric data

Narrow focus 3200K – 124 lm/W (at 1620mA)
Beam dia. 0.7 1.4 2.1 2.8 3.5 4.2 m
lux 12980 3245 1442 811 519 360
Distance 5 10 15 20 25 30 m

Wide focus
Beam dia. 1.6 2.4 3.3 4.1 4.9 5.7 6.5 7.3 8.1 m
lux 7046 3131 1762 1127 783 575 440 347 281
Distance 4 6 8 10 12 14 16 18 20 m

Narrow focus 5600K – 130 lm/W (at 1620mA)
Beam dia. 0.7 1.4 2.1 2.8 3.5 4.2 m
lux 14740 3685 1637 921 590 410
Distance 5 10 15 20 25 30 m

Wide focus
Beam dia. 1.6 2.4 3.3 4.1 4.9 5.7 6.5 7.3 8.1 m
lux 8250 3666 2062 1320 916 673 515 407 330
Distance 4 6 8 10 12 14 16 18 20 m

This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.

Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.

Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.

Can’t find your lantern manufacturer or model in the list?
Not sure what the details are of the lantern/light you’re planning to use?
Which gobo material should I choose?
How long does it take to produce the gobo?
I’m in a rush! Can you get gobos to be quicker?
I’m not sure which gobo would be right, can you help?
Where are your gobos made?

Can’t find your lantern manufacturer or model in the list?
If you can’t find either your lantern manufacturer or model in the drop down lists above then please select ‘other’ from the manufacturer dropdown. This will then provide a simple text field where you can detail as much information you have about your lantern. Don’t worry about finding out the gobo size, we’ll contact the manufacturer directly if we don’t already have the size listed for your gobo.

Not sure what the details are of the lantern/light you’re planning to use?
In order to produce your gobo in the correct size we’ll need to know which fixture you plan on projecting the gobo from. If you can’t access the fixture at this time then try and take a photo and send it to our team at [email protected] for more info.

Which gobo material should I choose?
Please refer to the “Which Gobo Material” tab.

How long does it take to produce the gobo?
Stock gobos are typically made to order and shipped the same day (depending on the time of your order). Custom gobos can take a slightly longer in order to ready the artwork and get your proofs approved. Our standard shipping offering deliver next day.

I’m in a rush! Can you get gobos to be quicker?
YES! We understand industry requirements and are used to turning orders around very quickly. If you have specific requirements then get in touch with our team and we’ll sort it out for you. We don’t charge a penny more...

I’m not sure which gobo would be right, can you help?
We sure can. Our staff are experts in gobo projection and we’ve pretty much seen it all done! If you’re looking for any advice when it comes to gobo projection then please get in touch.

Where are your gobos made?
We’re the leading dealer in the UK for Rosco products. All of our gobos are produced directly in the state of the art facility at Rosco in London & Texas. Rosco supports our vision of supplying the highest quality gobos by using the best materials and latest manufacturing technology, so we’ve become great partners.
