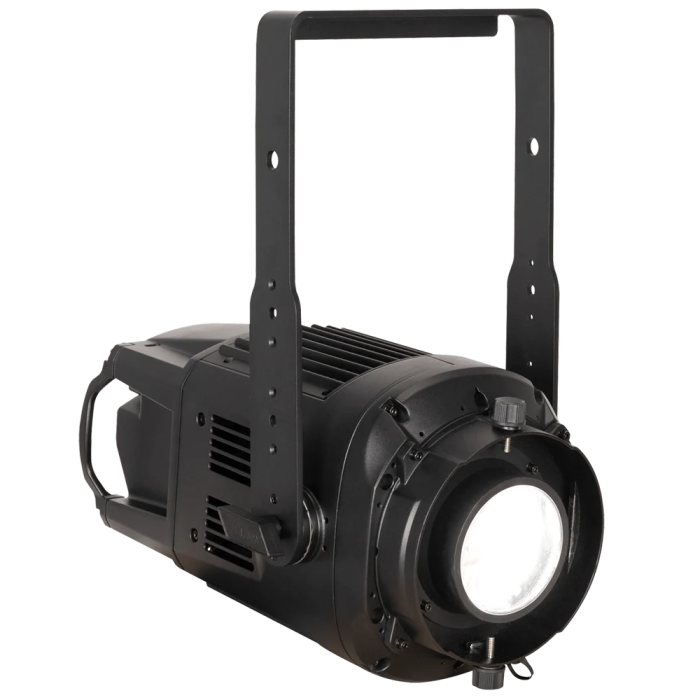

400W Full Spectrum RGBMA LED IP65 Light Engine
KL CORE IP is a professional-grade lighting solution. The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.
UPC: 810008265352
SKU: KLC102
The KL CORE IP LED engine offers nearly endless functionality in a rugged and adaptable design. Central to the performance of the device is its high-output, 400W Full-Spectrum LED that is capable of delivering over 15,000 lumens of output.
The KL CORE IP's fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal. The design is also compatible with most 3rd party shutter barrel assemblies, allowing seamless integration with existing setups. Further expanding its flexibility, the optional KL CORE IP Fresnel Lens transforms the fixture into a zoomable Fresnel, while the optional KL CORE IP Bowens Mount allows it to function as a monolight or lamp head for use with softboxes, lanterns, open-face reflectors, or other beam modifiers, making it ideal for TV/film and broadcast applications.
With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency. The integrated touch bar encoder allows the device to be easily controlled in stand-alone applications, and the Aria x2 wireless device management integration also offers additional control options. Configuration is made simple with the use of onboard NFC.
While the IP65-rating of the KL CORE IP keeps it safe in the harshest outdoor environments, it also ensures the device will work well for any indoor application too- helping to keep the fixture cleaner and dust free over long periods of time.
With its exceptional light quality, robust design, and unmatched flexibility, the KL CORE IP is the ultimate fixture for professionals who need a high-performance solution that adapts to a wide range of lighting requirements.
400W RGBMA LED Engine
ColourTune Technology Software Integration
15,588 Total Fixture Lumen Output (Sphere)
Accepts 3rd Party Ellipsoidal Shutter Barrels
Stand-Alone Control with Touch Encoder and OLED Display
Direct Connection & Control for optional IP65 Gobo Rotator
NFC & Aria x2 Wireless Device Management
IP65 Rated
Specifications
SOURCE
400W 6,000K RGBMA LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
15,588 (Integrating Sphere)
CRI 94.9
TLCI 95
EFFECTS
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
COLOR
ColourTune Technology
High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
9 DMX Channel Modes (1, 4, 6, 10, 11 19, 9, 15, 13)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
Integrated IP65 Gobo Rotator Connector and Control
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 9.1” (230 mm)
Length (Yoke 0°): 18.5” (469.8 mm)
Width: 11.5" (292 mm)
Height (Fixture Body): 8.9" (227.5 mm)
Height (Yoke 90°): 18.5" (471 mm)
Weight: 22.0 lbs (10.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
520W Max Power Consumption
Power Thru Capacity: 7A (1 units @115V, 4 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1773.2
INCLUDED ITEMS
Size 'B' Metal Gobo Holder
Safety Cable
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
KL CORE IP Shutter Barrel (KLC113)
KL CORE IP Bowens Mount (KLC136)
KL CORE IP Fresnel Lens (KLC125)
KL CORE IP with Shutter Barrel Kit (KLC124)
14deg IP Lens Tube (IPL014)
19deg IP Lens Tube (IPL119)
26deg IP Lens Tube (IPL226)
36deg IP Lens Tube (IPL336)
50deg IP Lens Tube (IPL450)
70deg IP Lens Tube (IPL570)
IP65 Gobo Rotator (IPGR01)
4 Wire Hardwire Installation Plate (HWP404)
2 Wire Hardwire Installation Plate (HWP202)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATES
Current Version: V1.01
Specifications and documentation are subject to change without notice.
This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.
Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.
Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.
