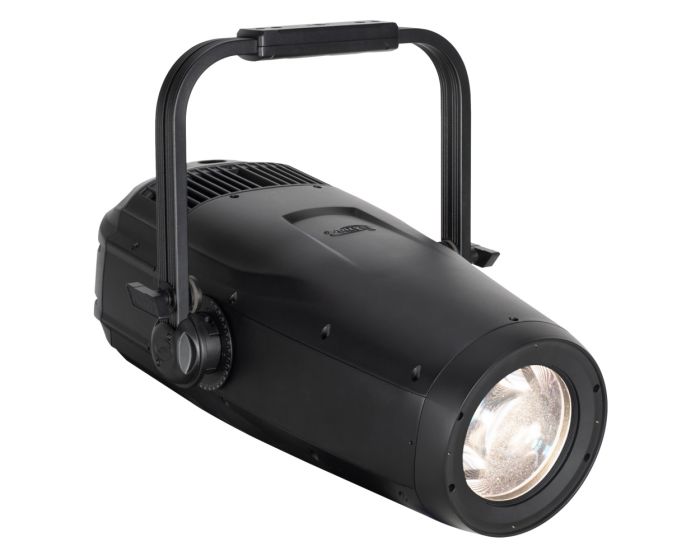

The KL SPOT IP™ is an IP65 static LED spot fixture designed for a wide array of precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array.
The KL SPOT IP is designed for any application where fully automated static ellipsoidal fixture with outstanding and impactful color range and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus, or framing positions.
A rotating gobo wheel, fixed gobo wheel, animation wheel, frost and dual prism round out its comprehensive feature set in a compact IP65 rated fixture.
The optional framing module enhances the fixtures capabilities further with full blackout framing shutters, framing indexing and a motorized iris.
Static full featured automated IP65 spot fixture
Extended color RGBMA LED Engine, 92 CRI
Rotating and Fixed Gobos plus Animation Wheel
Dual Prisms and Frost
Wide Zoom Range from 7° to 50°
Optional Motorized Framing/Iris Module
Specifications
SOURCE
305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
10,600 Total Lumen Output
CRI 92
Zoom Range 7° - 50°
EFFECTS
Motorized Zoom
Variable Frost Filter
4 Facet Round, 4 Facet Linear Prism
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Optional Framing/Iris Module
COLOR
RGBMA Color Array
CMY and RGB Emulation Modes
Variable CCT 2400-8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
6 DMX Channel Modes (24/32) RGB or CMY (22/28)
6 DMX Channel Modes (Framing) (34/50) RGB or CMY (32/46)
16-bit Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
IP65 5pin DMX In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length (Fixture Body): 9.5" (242.0mm)
Length (Yoke 90°): 17.4" (442.5mm)
Width: 17.5” (445.5mm)
Height: 23.6" (559.2mm)
Height (Yoke 0°): 26.1” (662.9mm)
Weight: 51.1 lbs (23.2kg)
Weight (with Framing Module) 55.1lbs (25kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
448W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1406.7
INCLUDED ITEMS
IP65 Locking Power Cable
OPTIONAL ITEMS
Motorized Framing and Iris Module
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.
Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.
Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.
Can’t find your lantern manufacturer or model in the list?
Not sure what the details are of the lantern/light you’re planning to use?
Which gobo material should I choose?
How long does it take to produce the gobo?
I’m in a rush! Can you get gobos to be quicker?
I’m not sure which gobo would be right, can you help?
Where are your gobos made?
Can’t find your lantern manufacturer or model in the list?
If you can’t find either your lantern manufacturer or model in the drop down lists above then please select ‘other’ from the manufacturer dropdown. This will then provide a simple text field where you can detail as much information you have about your lantern. Don’t worry about finding out the gobo size, we’ll contact the manufacturer directly if we don’t already have the size listed for your gobo.
Not sure what the details are of the lantern/light you’re planning to use?
In order to produce your gobo in the correct size we’ll need to know which fixture you plan on projecting the gobo from. If you can’t access the fixture at this time then try and take a photo and send it to our team at [email protected] for more info.
Which gobo material should I choose?
Please refer to the “Which Gobo Material” tab.
How long does it take to produce the gobo?
Stock gobos are typically made to order and shipped the same day (depending on the time of your order). Custom gobos can take a slightly longer in order to ready the artwork and get your proofs approved. Our standard shipping offering deliver next day.
I’m in a rush! Can you get gobos to be quicker?
YES! We understand industry requirements and are used to turning orders around very quickly. If you have specific requirements then get in touch with our team and we’ll sort it out for you. We don’t charge a penny more...
I’m not sure which gobo would be right, can you help?
We sure can. Our staff are experts in gobo projection and we’ve pretty much seen it all done! If you’re looking for any advice when it comes to gobo projection then please get in touch.
Where are your gobos made?
We’re the leading dealer in the UK for Rosco products. All of our gobos are produced directly in the state of the art facility at Rosco in London & Texas. Rosco supports our vision of supplying the highest quality gobos by using the best materials and latest manufacturing technology, so we’ve become great partners.
