iProMotion

In stock
Code
iProMotion/W EP L 17 degree ADM

iProMotion Full HD Moving Image & Advertising Projection Remote content management Fully automated - no site intervention required.

View full details

Configure now

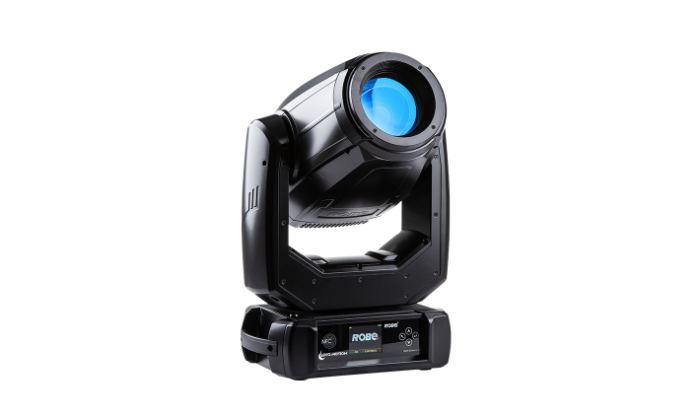

Elevate your bar, club, stage, or retail promotions to new heights with the cutting edge Robe iProMotion™ IP65 rated moving head effects and video projector. The sleek and compact iProMotion™ projector delivers a vibrant output of 1.000 ANSI Lumens using its enduring 20.000 hour LED source. With advanced RGB and CMY colour mixing capabilities, colour temperature control, digital gobos, graphic effects, and video projection, the possibilities are limitless - rain or shine! Empowering creativity, iProMotion™ allows seamless uploads of custom artwork, photos, and videos, with live streaming input from external HD multimedia interfaces. Its 32 GB high-speed internal memory provides plenty of storage.
As you would expect the iProMotion™ ensures precise control over projection including keystone, iris, grey box, and motorized focus adjustments. Choose from two projection formats – 16 x 9 Landscape or 9 x 16 Portrait - to suit your artistic vision. The beam angle is 17-degrees, with an optional 26-degree lens available. For clarity and focus, the optional ADM™ Automatic Distance Meter ensures sharp projection without manual intervention. Remote content management, with NAS client automatic content synchronization, and a real-time clock enable stop and start time of content, even in stand-alone opera tion. Our innovative ingress protection system, featuring patented RAINS™ technology, actively regulates humidity, temperature, and pressure within the fixture, guaranteeing optimal performance. parCOAT™ lens coating technology ensures crisp projection regardless of weather conditions, with its oleophobic and hydrophobic repelling properties.

Crafted to endure extreme conditions, the iProMotion™ boasts POLAR+™ technology, enabling operation in temperatures as low as minus 50 degrees Celsius, perfect for out door applications in the harshest environments. Weighing just 21 kg with its lightweight magnesium alloy construction and featuring network integration capability with CRMX wireless DMX control the iProMotion™ sets a new standard for outdoor moving head projection and effects, delivering unmatched performance, resilience, and adaptability. Experience the future of visual innovation with iProMotion™.
Automatic Distance Meter ADM™ (Automatic Distance Meter) is a unique technology based on an invisible spectrum source of light and set of sensors, to provide very precise distance information. This technology works perfectly with almost every possible surface, and helps the operator to maintain a sharp projection during dynamic pan and tilt movement. Autofocusing in real time is now a feature bringing iProMotion™ to an even higher technological level.

Remote Content Management Remote Content Management allows custom media content to be easily managed in large number of iProMotion™ devices simultaneously, and remotely, without the need for anyone to be present. This is an ideal solution for retail applications where content can be regularly updated in a chain of stores, shopping centers, car showrooms, bowling centers, sports facilities, restaurants, bars and clubs. The Management system works from any desktop or mobile platform simply by using a web browser, either via wired Ethernet network or by utilizing wireless Access Point, built directly into iProMotion™. RCM provides facilities for uploading, viewing and removal of content media files. Automatic synchronization of content ensures content consistency across the fleet of devices, and has been designed to allow for the addition of further devices to the installation, without the need to perform any further content management.

SOURCE
Light Source Type RGB LED device
Lifetime 20.000 hours Eco mode: extended life time of LED source

PROJECTOR SPECIFICATIONS
Light Output 1000 ANSI lumens (Comparable with 5000 ANSI lumen lamp projectors)
Projector version Landscape | Portrait
Aspect Ratio 16:9 | 9:16
Resolution 1920 x 1080 | 1080 x 1920
Beam Angle 17°
Throw Ratio 3.5:1
Contrast Ratio 500:1
Display Colours 16.7 million colours
Optional Wide Lens 26°
Throw Ratio Wide Lens 2.3:1

MAIN FEATURES
Colour Mixing mode RGB/CMY
White Light Variable CCT 3.200K - 9.500K
Colour effect wheel with wide
range of in-built effects
Colour transitions and cross-fades, multiple colour images, rainbow effects
Digital gobo wheel 1 With standard gobos, images and videos
Digital gobo wheel 2 With user´s gobos, images and videos
Gobo rotation and indexing
Video on/off and speed control
Effect wheel with wide range of
graphic effects
Kaleidoscopic effect, fish eye, iris, zoom, swirl effect, pixelation effect, cross-stitching, posterizati‑
on, and more…
Effect speed control
Keystoning Horizontal / Vertical
ADM™ Automatic distance meter Upon Request
Grey box correction
Motorized focus
Dimmer 0-100%
Pre-programmed random strobe & pulse effects
POLAR+™ for power saving and instant operation in extremely cold weather conditions
Real Time Streaming Protocol (RTSP)

CONTROL & PROGRAMMING
Setting & Addressing ROBE Navigation System 2 (RNS2)
Display
QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning,
operation memory service log with RTC, stand-alone operation with 3 editable programs (each up
to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ Robe Ethernet Access Portal
Epass™ Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power to automatically maintain network connectivity
RAINS™
Robe Automatic Ingress Neutralization System manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
WiFi Wireless CRMX™ technology from Lumen Radio
DMX Protocol Modes 2
Control channels 25, 33
RTC (Real-time clock) Built-in device to keep track of actual time in order to start and stop playback at given time Stand-alone operation

CONTENT MANAGEMENT
Remote content management
Internal Storage High speed internal memory for user content – 32 GB
NAS client Automatic content synchronization tool

MOVEMENT
Pan movement 540°
Tilt movement 250°
Movement control Standard and Speed
Controllable speed of Pan/Tilt movement
Automatic Pan/Tilt position correction
MAPS™ Motionless absolute positioning system for Pan and Tilt (Patented)

OPTICAL SYSTEM parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt,
dust, haze and smoke from adhering to the output lens
HARDWARE Raspberry Pi, Model 3, 1GB
OPERATING SYSTEM Linux OS
THERMAL SPECIFICATION
Max. ambient temperature 50°C (122°F)
Max. surface temperature 80°C (176°F)
Max. operating temperature -50°C (-58°F)

ELETRICAL SPECIFICATION & CONNECTIONS
Power supply Electronic auto-ranging
Input voltage range 100-240 V, 50/60 Hz
Power consumption 140 W
Power connector in/out Neutrik powerCON TRUE1 in/out
DMX & RDM data in/out Locking 5-pin XLR
Ethernet port in/out RJ45 for Embedded Epass™ switch 10/100 Mbps
CERTIFICATION Listings ETL/cETL, CE

PHYSICAL
Width x Height x Depth 390 x 649 x 235 mm / 15.35 x 25.55 x 9.25 in. (head in vertical position)
Weight 21.3 kg / 46.9 lbs
Ingress protection rating IP65

RIGGING
Mounting points 1 pair of 1/4-turn locks
1x Omega adaptor with 1/4-turn quick locks
Universal operating position
Safety cable attachment point

INCLUDED ITEMS
User Manual
Omega Adaptor CL-regular
Power cord including powerCON TRUE1 In connector: US:13052277-01 | EU:13052276-01

OPTIONAL ACCESSORIES
Doughty Trigger Clamp: 17030386
Safety wire 36 kg: 99011963
Single Top Loader Case: 10120355
Dual Top Loader Case: 10120356
Ceiling mounting kit for iProMotion black: 10981015
Quad Top Loader Case: 10120357
Foam Shell: 20020465
