Collections of Rosco OPTI-SCULPT lensing solutions that lighting professionals can use to accurately and affordably control the shape of their light. Available in two easy-to-use and easy-to-ship versions: An 11-piece Design Kit and a range of 5-Piece Kits.
The 11-Piece Design Kit contains the full range of OPTI-SCULPT lenses, making it an affordable way to test OPTI-SCULPT lenses in an application or to include them in a rental package.
The 5-Piece OPTI-SCULPT Kits feature five lenses of the same pattern to make lensing multiple fixtures with the same beam pattern quick and easy.
What’s in the Kits:

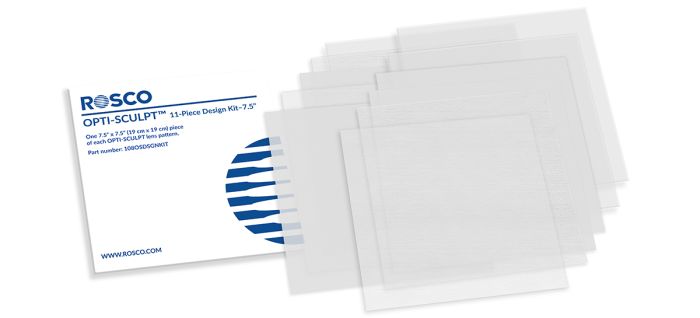

11-Piece Design Kit: one 7.5” x 7.5” (19 cm x 19 cm) cut
each of all 11 OPTI-SCULPT lens patterns.
5-Piece Kits: five 7.5” x 7.5” (19 cm x 19 cm) cuts of one
OPTI-SCULPT lens pattern.
Rosco OPTI-SCULPT lenses provide precise angular beam
control – enabling lighting professionals to accurately and
affordably control the shape of their light. Rosco’s unique,
proprietary process offers increased brightness with
engineered light distribution that has been laboratory
tested for accuracy and repeatability.
There are 11 different symmetrical and asymmetrical
OPTI-SCULPT lenses to choose from, including the unique
40°/60° Reversible pattern. Each OPTI-SCULPT lens is
manufactured using flame-retardant, 10 mil thick, semi-rigid
polycarbonate that can be cut to any size and shape to fit
any light fixture.
OPTI-SCULPT is available in:
• 24”x20” (50 cm x 50 cm) sheets
• 24”x40” (60 cm x 100 cm) sheets
• An 11-Piece Design Kit containing one
7.5"x7.5" (19 cm x 19 cm) lens of each pattern
• 5-Piece Kits that contain five 7.5"x7.5"
(19 cm x 19 cm) lenses with the same pattern
KEY FEATURES
• Engineered and laboratory tested for accurate and
repeatable beam shaping
• High transmission
• Manufactured using heat-resistant, flame-retardant
polycarbonate
• Designed for LED fixtures, but also suitable for use on
conventional fixtures
• Durable – The lens’ performance is not adversely
affected by dust, fingerprints or by marking the back of
the lens
• Available in eleven different patterns, including the
unique, reversible 40°/60°
SPECIFICATIONS
Thickness: 10 mil (254µ)
Substrate: Clear polycarbonate
Contains flame retardant additive
Available Sizes: 24” x 20” (60 cm x 50 cm) sheet – seamless
24” x 40” (60 cm x 100cm) sheet – seamless
Thermal Performance: -40° F – +320° F (-40° C – +160° C)
Transmission: >85%
Flame Retardant Rating: M1, B1, C1, BS3944 PART 1 1992,
NFPA 701
Each OPTI-SCULPT lens has a textured side and a smooth side. In order to achieve the lens’ stated
beam shape, position the OPTI-SCULPT filter with the smooth side towards the lamp. For the
40º/60º Reversible OPTI-SCULPT – position the lens with the smooth side towards the lamp to
achieve the 40° beam shape and the textured side of the filter toward the lamp to achieve the 60°
beam shape. In order to create an accurate experience with OPTI-SCULPT, we recommend
testing it with a small fixture like a pin spot or a small fresnal fixture. The use of lasers and mobile
phone LED lights may provide different, misleading results. Please note the OPTI-SCULPT effect,
per each design, is subjective to the light fixture in use.
This is the most common question we're asked and you're certainly not alone in not knowing which to choose. Metal and Glass Gobos have their own advantages and disadvantages and the choice will really depend the design and the lantern you wish to project from. In many cases your lantern manufacturer will recommend a gobo material, so if unsure then please check with them or speak to a member of our team.
Metal Gobos
Patterns are etched from metal sheets to produce a stencil. Any 'islands' of metal are held in place with fine lines which may show in projection. Metal is cost effective and good for simple black & white designs. If you need to move the gobo from fixture to fixture or travel on the road with it, then it offers a pretty durable solution and will last the course. If you need to project something simple or as a one off then metal provides a cost effective solution.
Glass Gobos - Most Popular!
Images are created by etching away the metal or dichroic coating on the glass allowing for high resolution images, including greyscale and multi-colour. Glass Gobos are suitable for more detailed patterns, coloured logos and photographic images. They are recommended for long term use & the glass is able to withstand high temperatures in your lantern when handled correctly.
Can’t find your lantern manufacturer or model in the list?
Not sure what the details are of the lantern/light you’re planning to use?
Which gobo material should I choose?
How long does it take to produce the gobo?
I’m in a rush! Can you get gobos to be quicker?
I’m not sure which gobo would be right, can you help?
Where are your gobos made?
Can’t find your lantern manufacturer or model in the list?
If you can’t find either your lantern manufacturer or model in the drop down lists above then please select ‘other’ from the manufacturer dropdown. This will then provide a simple text field where you can detail as much information you have about your lantern. Don’t worry about finding out the gobo size, we’ll contact the manufacturer directly if we don’t already have the size listed for your gobo.
Not sure what the details are of the lantern/light you’re planning to use?
In order to produce your gobo in the correct size we’ll need to know which fixture you plan on projecting the gobo from. If you can’t access the fixture at this time then try and take a photo and send it to our team at [email protected] for more info.
Which gobo material should I choose?
Please refer to the “Which Gobo Material” tab.
How long does it take to produce the gobo?
Stock gobos are typically made to order and shipped the same day (depending on the time of your order). Custom gobos can take a slightly longer in order to ready the artwork and get your proofs approved. Our standard shipping offering deliver next day.
I’m in a rush! Can you get gobos to be quicker?
YES! We understand industry requirements and are used to turning orders around very quickly. If you have specific requirements then get in touch with our team and we’ll sort it out for you. We don’t charge a penny more...
I’m not sure which gobo would be right, can you help?
We sure can. Our staff are experts in gobo projection and we’ve pretty much seen it all done! If you’re looking for any advice when it comes to gobo projection then please get in touch.
Where are your gobos made?
We’re the leading dealer in the UK for Rosco products. All of our gobos are produced directly in the state of the art facility at Rosco in London & Texas. Rosco supports our vision of supplying the highest quality gobos by using the best materials and latest manufacturing technology, so we’ve become great partners.
